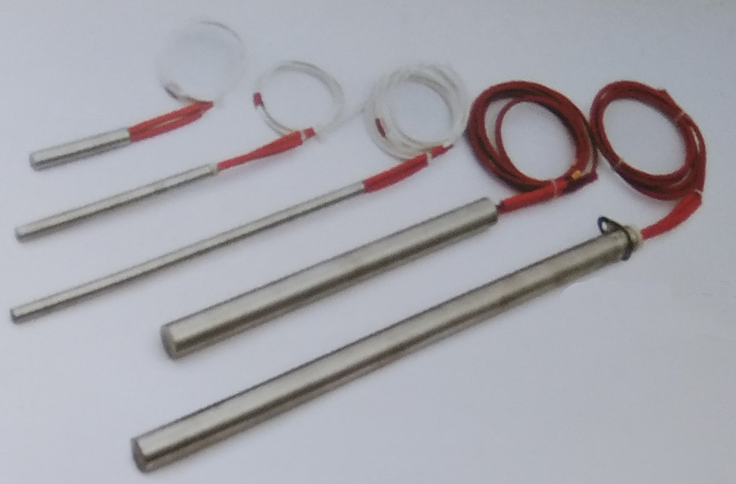

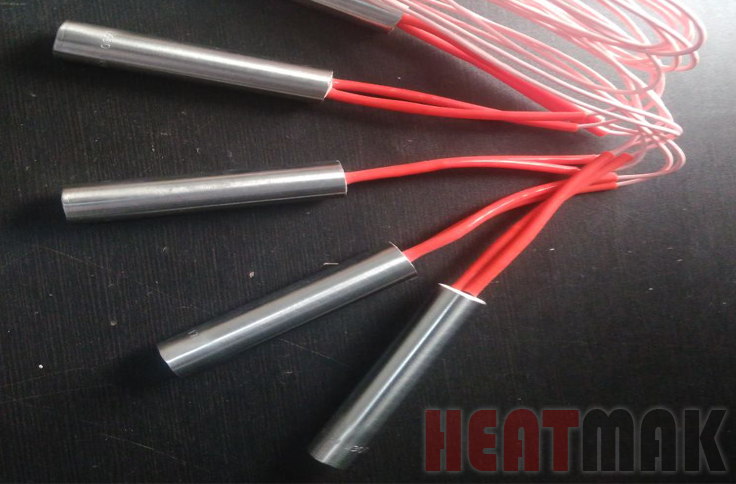

High Watt Density Cartridge Heaters :-

Image Title
Image Title
Image Title

Description:

>> Construced in Brass & S.S
>> S.S. OR Brass sheath is used on all Low-Density cartrige heaters to Provide the best combination of physical strength
>> Having variety of terminaltypes like Leads, Screw or Pin type
>> Also available High Density Cartridge heater

Technical Data:

>> Helically wound 80/20 Nickel Chrome or Kenthal resistance wire
>> High purity Magnesium Oxide(MgO) is used to fill it
>> Can be fabricated as per requirement, in different diameters

Application:

>> Molds & Dies
>> Sealing & Fluid Heating
>> Platens & Hot Plates
>> Life Sciences & Aerospace

Ordering Information Required:

>> Dai. Require
>> Type of Terminal
>> Length Required
>> Drawing or Photos If available
>> Volt & Wattage Require

High Density Cartridge Heater:

>> We Manufacture High Density Cartridge Heaters using only high quality materials, which guarantees that they operate even under extreme condition

Advantages Of High Density Cartridge Heater:

>> High Watt Density Permit Smaller Heaters to be used without sacrificing life expectancy. This results in up-front as well as long-term cost saving with maximum wall density up to 50 watt/cm
>> Swaged construction provides maximum support for the resistance wire, eliminating the effects of vibration and shock
>> Termination style and special features allow customization to any application
